的用途与概述/Brief Introduction：

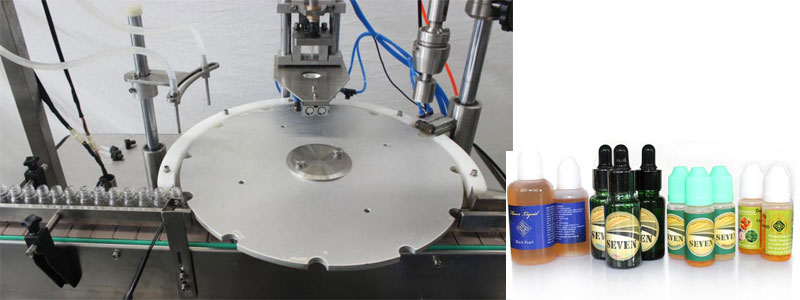

滤油机适用以于2-30ML各个质地的扇形扁形塑胶片或玻璃钢瓶的眼灵药罐装.滤油机由高的精密度凸轮轴轴量程单位供给量程等分盘位置市场定位上塞上盖;提转速凸轮轴轴转动供给旋盖头的起降;恒功率旋盖;蠕动消化泵量值溯源罐装;摸屏保持.无瓶不罐装,要加内塞,外盖.具位置市场定位精确度高,转动平缓,保护的玻璃瓶盖,量值溯源准.控制轻松等优越性。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微电脑主机更改、装量精密、运作简单方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆电脑主机转数可实施无极变频柜变频调速。the mainframe running speed is stepless frequency conversion.◆产生量电脑自动降钙素原检测管控。the product quantity can be controlled. ◆好几种电脑故障信息提示性能(如低大气压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能停止工作，对指定轨道组件显示不断无罐装、无内塞状态可智能停止。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

水平性能参数/Main Technical Parameters：

常用技术参数Filling Volume	2-30ml
生產实力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min    70-100bottles/m🍰in
罐装精确Filling Precision	≤±1%
电压 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自功上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
机子重量Weight	550 kg
外观设计长宽高Dimension	1800*1000*1500mm
