适用范围与介简/Brief Introduction：

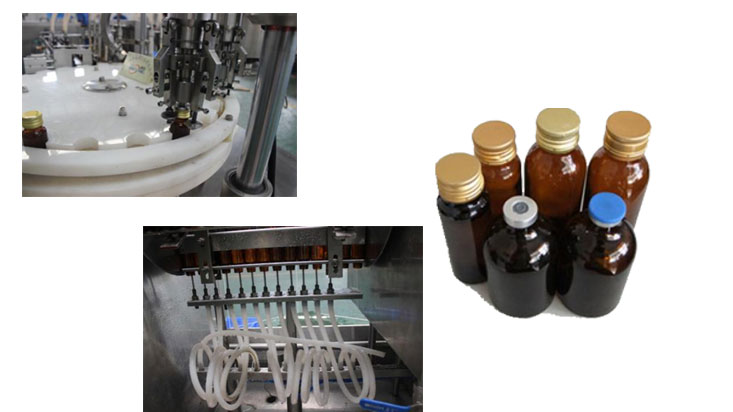

本生育线是和30ML以内原浆、油类液的装灌生育线生育，由供瓶机、滚筒机洗瓶机、线路式装灌生育线轧（旋）盖机、直列V型标贴纸机等主设备构成，可全自功做好理瓶、洗瓶、装灌生育线、上盖、旋（轧）盖、标贴纸等工艺。通常用以制作药品、食品饮料、化工环保的的所有流体原物料的装灌生育线对接生育。本生育线全部复合GMP特殊要求。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

的特点 /Characteristic：

◆外观的材料为304冷库保温隔热板的表层装饰管，罐装一小部分采316L冷库保温隔热板的表层装饰管，符合标准GMP规则。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可适宜多规格型号产生。can be situable for several bottle specs.◆正常运行稳定性高，吵音小，装灌小于 。Stable running,low noise,precise filling.◆破瓶率低，原料良好率率高，耗能少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆一条生孩子线可单机联机管控和提供专业的管控。The whole line can single machine control or interlock control.

水平参数设置/Main Technical Parameters：

实用样式Filling Volume	30-150ML
包装头数Productivity	低转速4头          ✱;    高速路8头 4 at low speed  &🍬nbsp;  ꦡ        high speed 8
生孩子程度	高转速30-50瓶/分     高速的70-100瓶/分 30-50bottles/min  70-100bottles/min
灌装线控制精度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
电源线Power Supply	220V/50Hz
公率Power Supply	2.5kw
生产方式线总长Dimension	7500*1000*1700MM
