的用途与详细介绍：/Purpose and introduction

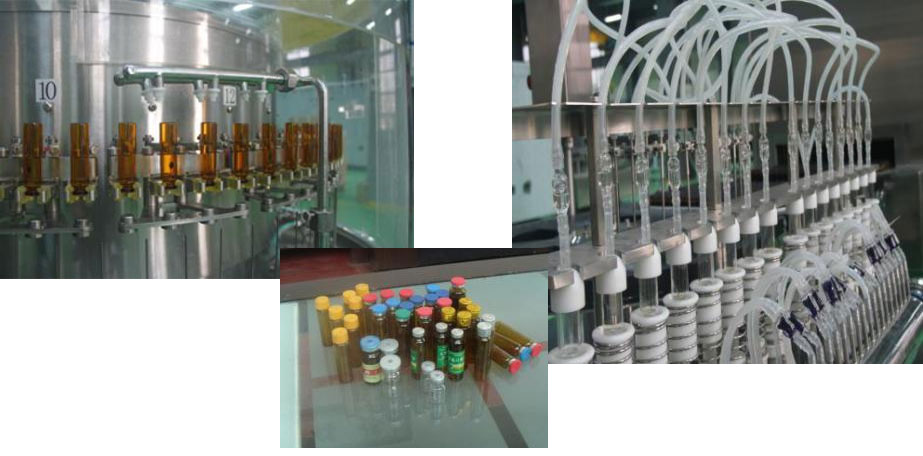

服食液洗烘灌轧三级三级联动线由双面超声波清洁波洗瓶机、铁路桥式热气 嵌套循环过滤除菌方法干燥箱、服食液罐装设备轧盖机等根据，更适合于 5-30ml 等不一样规 格服食液瓶的研发。可已完成对医疗耗材研发中安瓿瓶淋水、超声波清洁波清洁、冲水、充 气、烘干处理过滤除菌方法、放置冷却、罐装设备、轧盖等工艺设计方法的三级三级联动操作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优势:/characteristic

◆洗瓶机利用机械装备手夹瓶，符合很多种规格参数的空瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选用水蒸气喷针回转式跟踪定位加入途径，清晰视觉效果要好，开源节流清洁能源。并要设针架防颤动传动装置，挺高喷针加入空瓶的正确度，以减少断针迹象再次发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一整块雾气液压管路、喷针完整独立自主分离开来，预防了交错式危害，包含GMP规范标准耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺栓前另装保护措施块，有保护措施螺栓，可以减少碎瓶使用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶分为纵向国外进口同步软件带，联接拨块运送液体液，操作安全能信In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆真空烘箱主要采用红外线微波加散热片，装饰管微波加散热片单层微波调温温差均匀的性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机供选择配瓷质泵、不锈钢材质泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装罐无瓶止灌，无瓶不轧盖功效。Pieces filling without bottle filling, no bottle no rolling function.◆整线选用PLC总调节、定频器、触模屏调节技术水平，使用安全靠得住。触模屏可彰显各单机联机的使用的情形，各调节点的水管打压、大气压、压力、工作温度等彰显，各电源开关的情形和问题彰显，问题自我管理测试和问题剖析及清除做法。使另一生孩子工作满足自然化调节，联线还具有三机自动化稳定性试验装置，衡量生孩子平衡靠得住。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.只能根据企业的必须要，还可供选择：According to the needs of customers, but also available for selection:◆simens、斯耐德、西门子、台达等国产品牌调整软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负担、油温及彩超波刚度、颗粒物再生颗粒、空气流速百度在线在线检测、报警声音、见证、打印纸整体。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌要进行隔离器装置。Mixer ORABS, CRABS, aseptic isolator system.

技术水平主要参数：technical parameters

应用外形尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线精度等级Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合理率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
